Walkie stackers are compact machines used to lift, stack, and transport pallets in tight spaces. They’re ideal for warehouses, retail stores, and small storage areas where larger forklifts can’t easily maneuver, providing an efficient solution for handling materials at lower to medium lift heights.
Big Joe's award-winning line of walkie stackers have set the industry standard since day one. Big Joe offers both straddle stackers with a tight turning radius, as well as counter-balance stackers that have the ability to maneuver in and out of trailers.

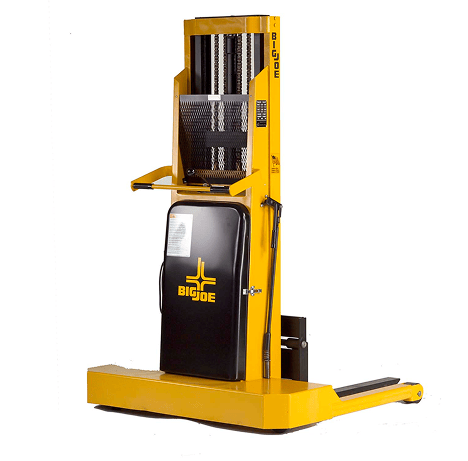

IBH (In-Between Handling) Lift Truck
Capacity: 1,000 - 2,500 lbs.
Features
- 1,000 to 2,000lb. Capacity depending on vehicle configuration
- 12volt electrical power with built-in battery pack and charger
- Premium steel frame construction protects components and reduces maintenance.
- Premium steel mast construction provides extended service life and load stability.
- Compact vehicle design provides exceptional maneuverability in tight areas.
- Shaft type forks provide for easy adjustment.
- Chrome plated lift cylinder with pressure compensation lowering valves.
- A wide variety of vehicle options to meet your specific application needs.
- Optional add on attachments designed for a variety of special industry applications.
Specifications
|
Vehicle Type
|
Manual straddle stacker
|
|
Capacity
|
1,000lbs. to 2,000lbs. @ 18” or 24” load center
|
|
Power
|
12 volt electric with battery pack and charger
|
|
Max Lift Height
|
Masts available from 57” to 144”
|
|
Collapsed Height
|
Based on configuration and max lift height |
|
Fork Dimensions
|
A wide variety of options available
|
|
Vehicle Dimensions
|
Varies see media tab to download product sheet
|
|
Turning Radius
|
As little as 46” up to 54.25” depending on model
|
|
Battery Capacity
|
105AH / 125 AH/ 155AH available
|
|
Charger
|
Internal included
|

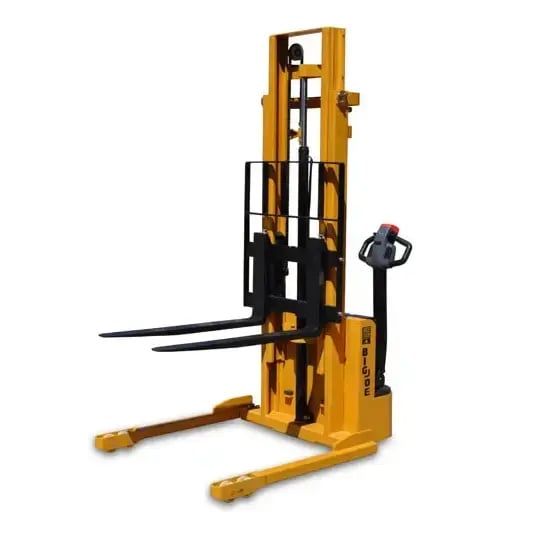

S22 - S22-R Walkie Stacker
Capacity: 2,200 lbs.
Features
- 24 volt system
- High efficiency drive motors.
- Adjustable straddles. S22-62R Fork over configuration available.
- Infinitely variable speed operation for tight turning in close quarters
- Ergonomic handle with safety reversing switch and horn
- Maintenance free integral batteries and 110volt charger
- Battery discharge indicator, Emergency power disconnect
- Key switch to limit access to approved personnel
Specifications
| Vehicle Type | Walkie Straddle Stackers |
| Capacity | 2,200lbs. @ 24” load center |
| Power | 24 volt - S22 DC / S30 AC |
| Max Lift Heights | S22 62", 96", 116" |
| Fork Dimensions | 42" x 4" x 1.5" / S22-62R 45" x 22" |
| Vehicle Dimensions | See specification sheet |
| Turning Radius | See specification sheet |
| Travel Speed | 2.5 mph |
| Battery Compartment | See specification sheet |
| Battery Capacity | S22 60AH to 85AH |
| Charger | Integral to pack, 110v plug-in |

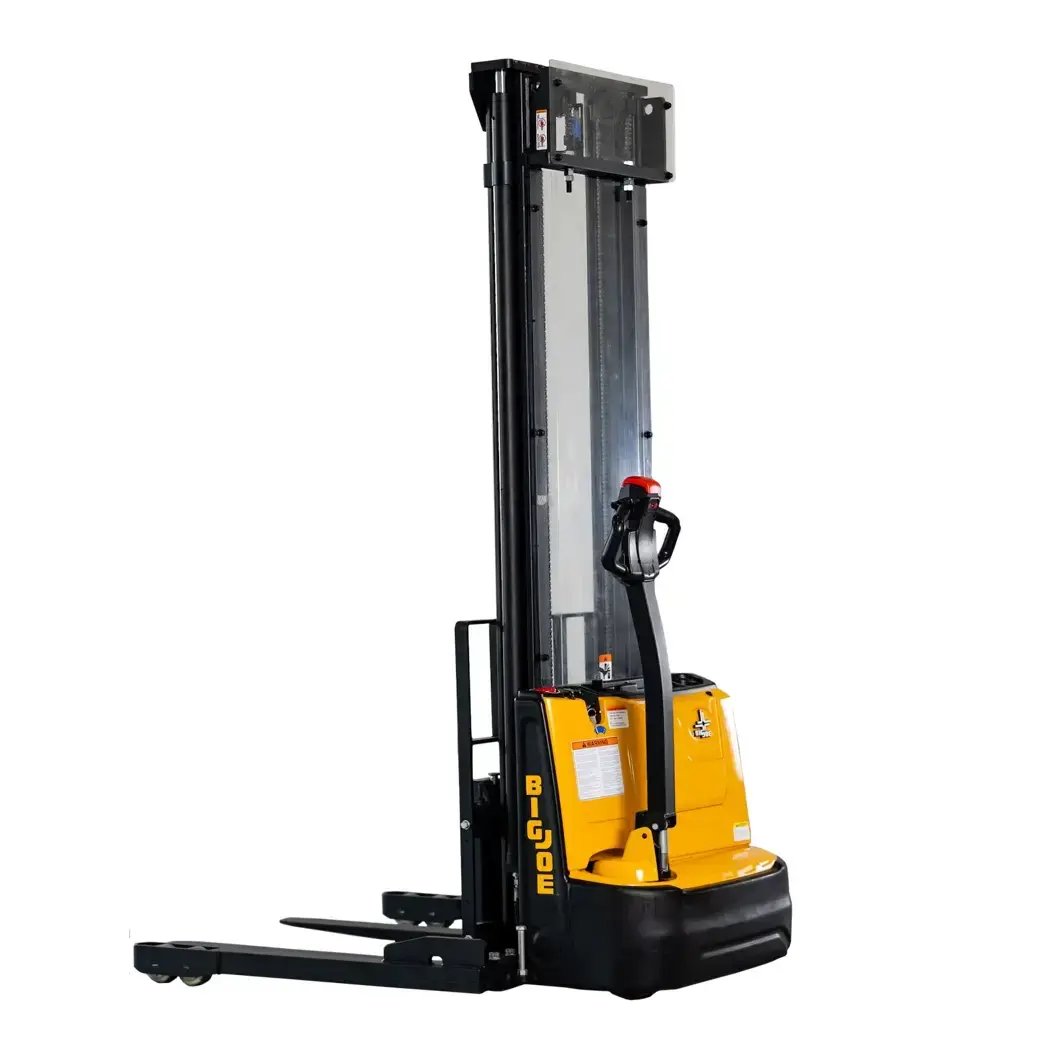

S26 Walkie Stacker
Capacity: 2,600 lbs.
Features
- 24V infinitely variable travel control
- DC drive and lift motor
- UL-recognized 24V 100Ah lithium-ion bettery
- 30A, 120 VAC integral, plug-in smart charger
- Adjustable straddle legs: 42" to 51" in 3" increments
- Offset control handle, thumb control travel functions
- Lift and lowering controls in the handle
- Battery discharge indicator, hour meter, and key switch
Specifications
Drive: Electric
Load capacity: 2,600lbs.
Load center distance: 24 inches
Load distance, center of drive axle to fork: 30.4 inches
Wheelbase: 48.6 inches
Service weight: 1808 lbs.
Axle loading, laden (front/rear) lb. 1698 / 2756
Axle loading, unladen (front/rear) lb. 1323 / 485
Wheel type: Polyurethane
Wheel size, front in. 8.5 x 3
Wheel size, rear in. 4 x 2
Additional wheels in. 5 x 2
Wheels, number (front/rear) - x=drive wheels 1x, 1/4
Tread width, front in. 21.4
Tread width, rear in. 42.1 / 45.1 / 48.1 / 51.1
Max lift height: in. 149
Retracted mast height: in. 83
Extended mast height: in. 185
Height of tiller handle in drive position (min / max) in. 30 / 45
Height of base legs: in.4
Lowered height in. 2.5
Overall lengthin. 67.7
Length to face of forks in. 25.6
Fork dimensions in. 1.6 x 4 x 42
Fork carriage width in. 32.5
Fork spread in. 7.9 - 30.7
Distance between base legs and loading surfaces in. 39 / 42 / 45 / 48
Ground clearance, laden, below mast in. 1.2
Ground clearance, center of wheelbase in. 1.6
Right angle stack (assumes 40” W x 48” D pallet Ast in. 84.6” + Clearance
Turning radius in. 58

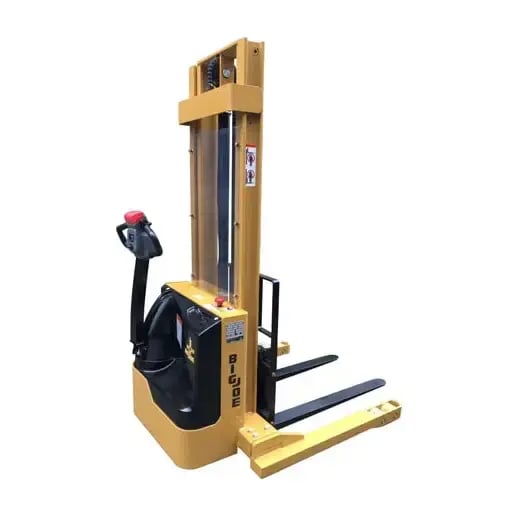

S30 Walkie Straddle Stacker
Capacity: 3,000 lbs.
Features
- 24volt system
- High efficiency drive motors.
- Adjustable straddles. S22-62R Fork over configuration available.
- Infinitely variable speed operation for tight turning in close quarters
- Ergonomic handle with safety reversing switch and horn
- Maintenance free integral batteries and 110volt charger
- Battery discharge indicator, Emergency power disconnect
- Key switch to limit access to approved personnel
Specifications
| Vehicle Type | Walkie Straddle Stackers |
| Capacity | 3,000lbs. @ 24” load center |
| Power | 24 volt - S22 DC / S30 AC |
| Max. Lift Heights | S30 128" |
| Fork Dimensions | 42" x 4" x 1.5" |
| Vehicle Dimensions | See specification sheet |
| Turning Radius | See specification sheet |
| Travel Speed | 2.5 mph |
| Battery Compartment | Integral |
| Battery Capacity | 100AH |
| Charger | Integral to pack, 110v plug-in |

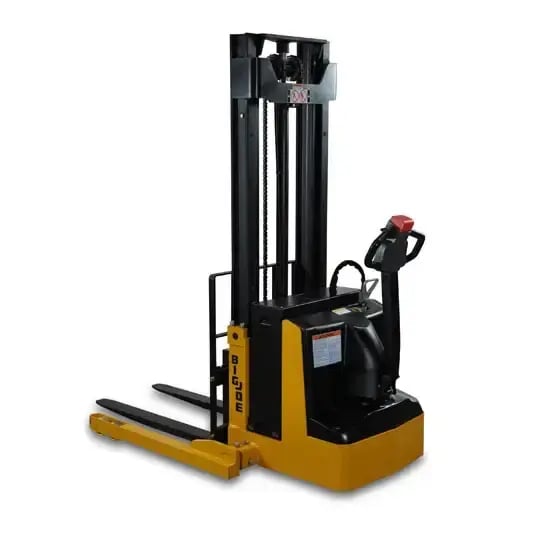

PDS25 Power Drive Straddle Truck
Capacity: 2,500 lbs.
Features
- 24 volt ZAPI transistor control
- High torque AC drive motor.
- Double reduction helical ZF GK10 transmission
- Shaft mounted electromechanical brake
- Creep speed operation for tight turning in close quarters
- Ergonomic handle with safety reversing switch and horn
- 224AH Maintenace free battery pack with integral charger
- Battery discharge indicator with hour meter
- Key switch to limit access to approved personnel
Specifications
|
Vehicle Type
|
Walkie Straddle Stackers
|
|
Capacity
|
2,500lbs. @ 24” load center
|
|
Power
|
24 volt AC electric with ZAPI transistor control-inverter
|
|
Max Lift Height
|
Masts available up to 157"
|
|
Collapsed Height
|
Masts available as low as 71"
|
|
Fork Dimensions
|
42" L x 4" W x 1.5" Thick |
|
Vehicle Dimensions
|
64.5" OAL x 44" OAW
|
|
Turning Radius
|
60.7" |
|
Travel Speed
|
Programmable with optional handset (0-3.7mph empty / 0-2.9mph loaded)
|
|
Battery Compartment
|
26.37” x 9.06” x OPEN
|
|
Battery Capacity
|
224AH Maintenace free battery pack
|
|
Charger
|
Integral to pack, 110v plug-in
|

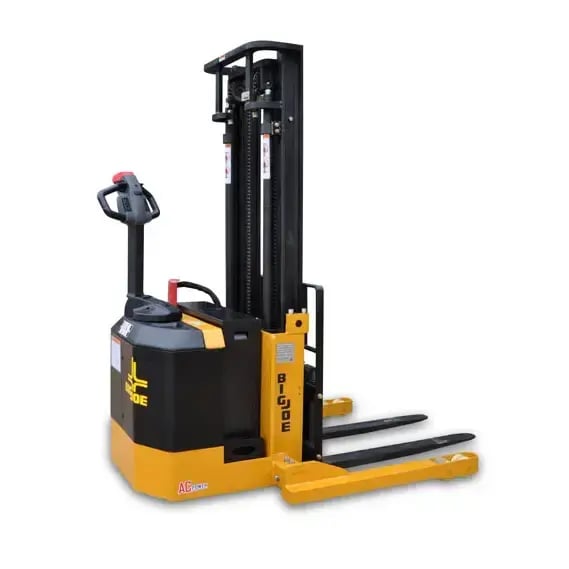

PDS30-40 Power Drive Straddle Truck
Capacity: 2,200 lbs.
Features
- 24volt ZAPI transistor control
- High torque AC drive motor.
- Double reduction helical ZF GK10 transmission
- Shaft mounted electromechanical brake
- Creep speed operation for tight turning in close quarters
- Ergonomic handle with safety reversing switch and horn
- 224 AH Maintenace free battery pack
- Battery discharge indicator with hour meter
- Key switch to limit access to approved personnel
Specifications
|
Vehicle Type
|
Walkie Straddle Stackers
|
|
Capacity
|
3,000lbs./4,000lbs. @ 24” load center
|
|
Power
|
24 volt AC electric with ZAPI transistor control-inverter
|
|
Max Lift Height
|
Masts available up to 177"
|
|
Collapsed Height
|
Masts available as low as 71"
|
|
Fork Dimensions
|
42" L x 4" W x 1.5" Thick |
|
Vehicle Dimensions
|
See specification sheet |
|
Turning Radius
|
See specification sheet |
|
Travel Speed
|
Programmable with optional handset (0-3.7mph empty / 0-2.9mph loaded)
|
|
Battery Compartment
|
26.37” x 9.06” x OPEN
|
|
Battery Capacity
|
224AH Maintenance free battery pack
|
|
Charger
|
Integral to pack, 110v plug-in
|

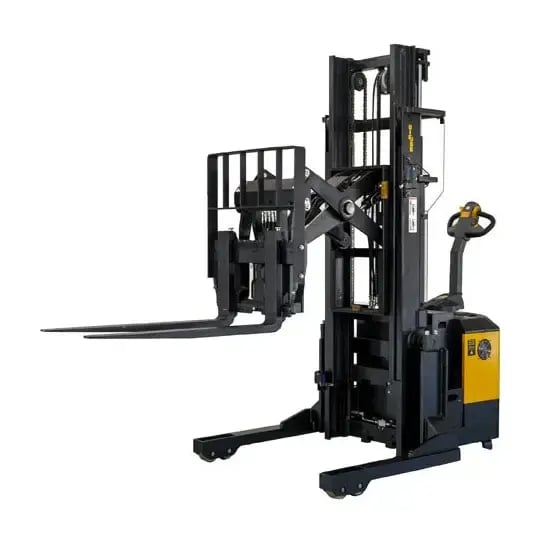

PDSR Walkie Reach Truck
Capacity: 3,000 lbs.
Features
- 24volt ZAPI transistor control with high torque AC drive motor.
- Pantograph extends forks beyond straddle legs.
- Power steering, sideshift, tilt and proportional lift, lower, extend & retract
- Choice of 34"/42" or 42"/50" fixed straddle legs.
- Ergonomic control handle with safety reversing switch and horn
- Industrial battery or 224 AH Maintenace free battery pack
- Battery discharge indicator with hour meter
- Key switch to limit access to approved personnel
Specifications
| Vehicle Type | Walkie Reach Stacker |
| Capacity | 3,000lbs.@ 24” load center |
| Power | 24 volt AC electric with ZAPI controller |
| Max Lift Height | Masts available up to 189" |
| Collapsed Height | Masts available as low as 76.5" |
| Fork Dimensions | 42" L x 4" W x 1.5" Thick |
| Vehicle Dimensions | See specification sheet |
| Turning Radius | See specification sheet |
| Travel Speed | Programmable with optional handset (0-3.7mph empty / 0-2.9mph loaded) |
| Battery Compartment | 31.6” x 9.06” x OPEN / 31.6" x 13.0" x OPEN |
| Battery Capacity | Industrial battery or 224AH AGM battery pack |
| Charger | External or 120v integral to battery pack |

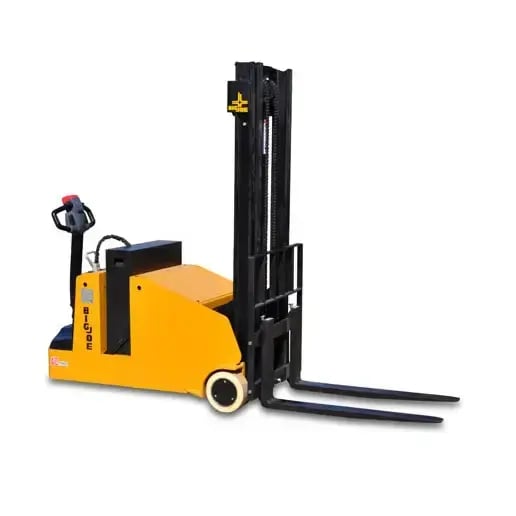

CB22 Counterbalanced Walkie Stacker
Capacity: 2,200 lbs.
Features
- 24 volt Zapi AC Controllers
- High torque AC drive motor
- Lift, lower and tilt buttons in handle
- Forward and back tilt for accurate positioning of loads
- High visibility I-beam mast with lift heights to 157"
- Base mounted tiller provides low steering effort on CB22
- Premium AGM battery pack or industrial battery options
- Battery discharge indicator with hour meter
- ITA Class II fork carriage
Specifications
|
Vehicle Type
|
Counterbalanced Stackers
|
|
Capacity
|
2,200 @ 24” load center
|
|
Power
|
24 volt AC electric with Zapi controller
|
|
Max Lift Height
|
Masts available up to 157"
|
|
Collapsed Height
|
Masts available as low as 71"
|
|
Fork Dimensions
|
42" L x 4" W x 1.5" Thick
|
|
Vehicle Dimensions
|
See specification sheet
|
|
Turning Radius
|
See specification sheet
|
|
Travel Speed
|
See specification sheet
|
|
Battery Compartment
|
See specification sheet
|
|
Battery Capacity
|
224AH AGM pack or Industrial
|
|
Charger
|
Integral to pack or external available
|

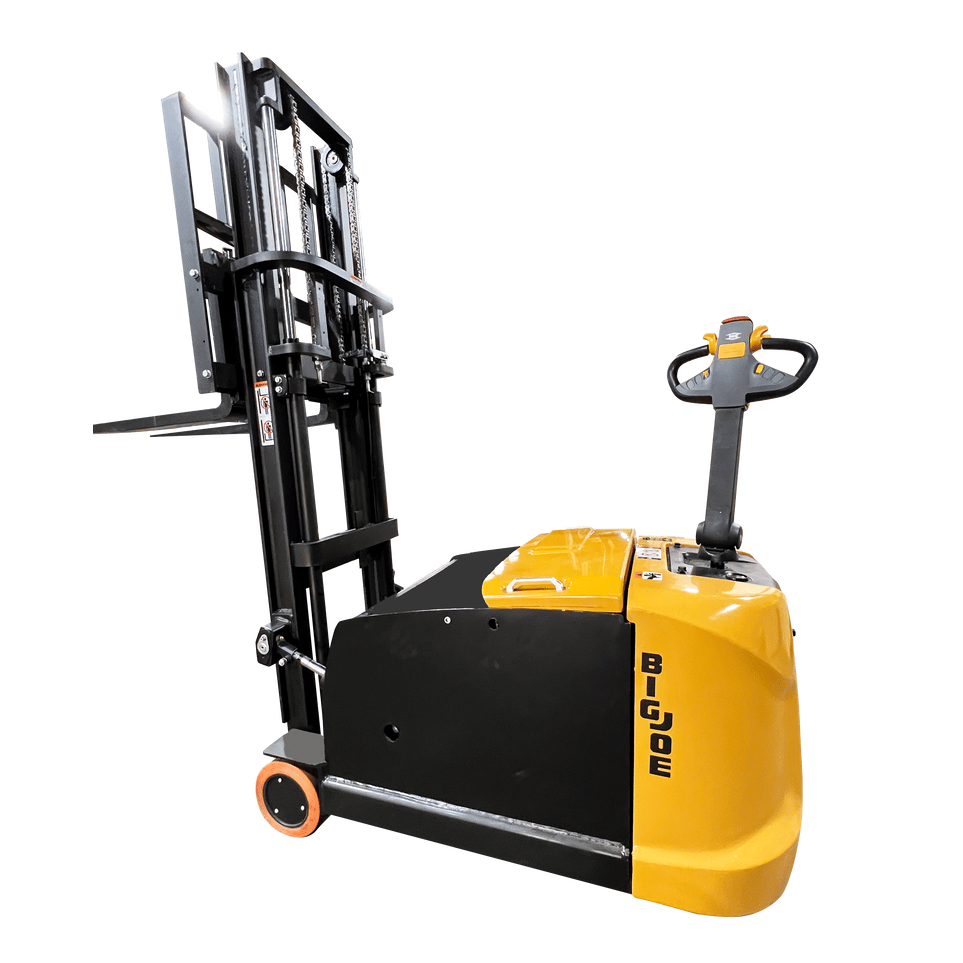

CB30/35 Walkie Stacker
Capacity: 3,000 - 3,500 lbs.
Features
- 24 volt Zapi AC Controllers
- High torque AC drive motor
- Lift, lower and tilt buttons in handle
- Forward and back tilt for accurate positioning of loads
- High visibility I-beam mast with lift heights to 157"
- Power steering
- Premium AGM battery pack, industrial or lithium battery options
- Battery discharge indicator with hour meter
- ITA Class II fork carriage
Specifications
| Vehicle Type | Counterbalanced Stackers |
| Capacity | 3,000lbs. & 3,500lbs. @ 24” load center |
| Power | 24 volt AC electric with Zapi controller |
| Max Lift Height | Masts available up to 157" |
| Collapsed Height | Masts available as low as 72.4" |
| Fork Dimensions | 42" L x 4" W x 1.5" Thick |
| Vehicle Dimensions | See specification sheet |
| Turning Radius | See specification sheet |
| Travel Speed | See specification sheet |
| Battery Compartment | See specification sheet |
| Battery Capacity | 224AH AGM pack or Industrial |
| Charger | Integral to pack or external available |

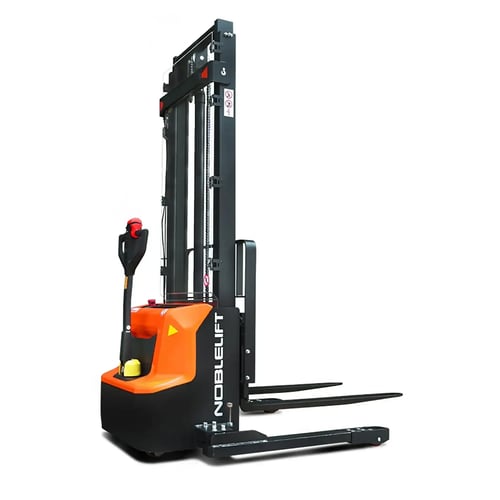

Noblelift walkie stackers bring together compact, maneuverable design with robust performance, along with easy maintenance and a lower cost of ownership.

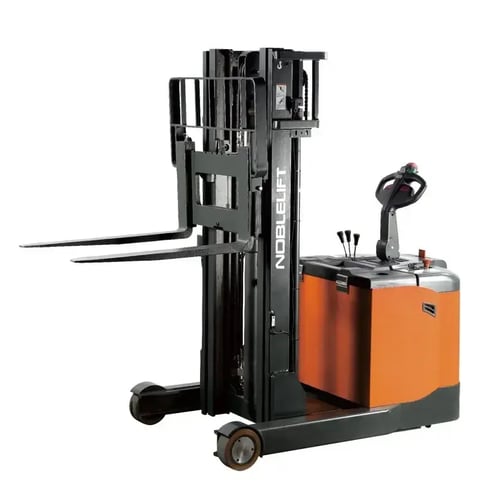

PS30RM Reach Counter Balance Stacker
Capacity: 3,000 lbs.
Features
- German AC Drive Technology – The powerful German Schabmueller maintenance free AC Drive motor in combination with the German Kordel gearbox, an American Curtis controller and battery discharge indicator with hour meter, deliver performance, efficiency and reliability – reducing your running costs while providing gentle or fast acceleration.
- Ergonomic Tiller – Ergonomic control handle equipped with dual butterfly-style thumb controls, horn button and belly button. Crawl speed button provides safe operation in tight spaces.
- Reach Mast – The PS30RM combines a counterbalance stacker with a reach mast, allowing it to operate within tighter spaces.
- Fork Tilt – The fork tilt feature allows easier and safer staging and pallet handling.
- Electric Steering – Electric steering system provides effortless operation, reducing operator fatigue, helping to reduce accidents and property damage.
- Maintenance Friendly – Engineered from the ground up to make service and maintenance easy.
- Robust Chassis – Robust chassis and larger support wheels provide extra durability for the most demanding warehouse operations.
Specifications
| Model | PS30RM-63 | PS30RM-71 | PS30RM-118 | PS30RM-142 | PS30RM-177 |
|---|---|---|---|---|---|
| Load Capacity | 3,000 lbs. | 3,000 lbs. | 3,000 lbs. | 3,000 lbs. | 3,000 lbs. |
| Load Center | 24" | 24" | 24" | 24" | 24" |
| Power | 24 volt / 270Ah Industrial Battery | 24 volt / 270Ah Industrial Battery | 24 volt / 270Ah Industrial Battery | 24 volt / 400Ah Industrial Battery | 24 volt / 400Ah Industrial Battery |
| Battery Charger | 24V/35A Charger 110V | 24V/35A Charger 110V | 24V/35A Charger 110V | 24V/55A Charger | 24V/55A Charger |
| Fork Dimensions | 42" Standard | 42" Standard | 42" Standard | 42" Standard | 42" Standard |
| Max Lift Height | 63" | 71" | 118" | 142" | 177" |
| Min Lift Height | 2" | 2" | 2" | 2" | 2" |
| Mast Stages | 1 | 1 | 2 | 3 | 3 |
| Turning Radius | 62.7" | 62.7" | 62.7" | 66.5" | 66.5" |
PSE26N SL Walkie Stacker
Capacity: 2,600 lbs.
Features
- Smart Lithium Battery Equipped with a maintenance-free Lithium battery and a built-in charger, the EDGE offers fast charging (2 hours) and opportunity charging, allowing you to charge between operations and during breaks.
- The integrated BMS (Battery Management System) controls all important parameters and performance of the lithium battery.
- Smart Ergonomic Tiller with Keyless PIN Code Panel and RFID Card Ergonomic design for comfortable daily operation. Includes battery discharge indicator, operating hour counter, and on-board diagnostics via error codes.
- Turtle Speed Button – Pinwheel Capability By holding the Turtle button down, the stacker will operate with the handle in the upright position, providing safe and easy operation within confined spaces.
- Dual Butterfly-Style Thumb Controls for traveling. Emergency reverse, horn and electric lifting and lowering buttons.
- Straddle Leg Adjustable straddle leg design is suitable for diverse pallet sizes and are made of solid steel for stability and safety.
- Increased Safety – Wide Mast A wide mast provides operator with a clear view of the forks and is not obstructed by mast sections, cylinder, or chains.
- Easy-Maintenance Convenient and fast access to any component of the truck. No Special tools are required.
- Curtis Controller and CAN-BUS Technology CAN-BUS technology makes analysis and adjustments easier, reducing downtime
Specifications
| MODEL | PSE26N-74 | PSE26N-114 | PSE26N-124 | PSE26N-140 |
|---|---|---|---|---|
| Load Capacity | 2,600lb | 2,600lb | 2,600lb | 2,600lb |
| Load Center | 23.6" | 23.6" | 23.6" | 23.6" |
| Power | 24 volt / 60Ah Lithium-ion LFP Battery | 24 volt / 60Ah Lithium-ion LFP Battery | 24 volt / 60Ah Lithium-ion LFP Battery | 24 volt / 60Ah Lithium-ion LFP Battery |
| Battery Charger | Built-in 24V/25A | Built-in 24V/25A | Built-in 24V/25A | Built-in 24V/25A |
| Fork Dimensions | 42" Standard | 42" Standard | 42" Standard | 42" Standard |
| Max Lift Height | 74" | 114" | 124" | 140" |
| Min Lift Height | 2" | 2" | 2" | 2" |
| Mast Stages | 2 | 2 | 2 | 2 |
| Turning Radius | 53" | 53" | 53" | 53" |
