Stretch Wrappers

Semi-automatic stretch wrap machines significantly improve your packaging operations. They can drastically reduce the time needed to wrap pallets compared to your current manual processes. Save both time and money with our robust line of semi-automatic pallet wrappers.

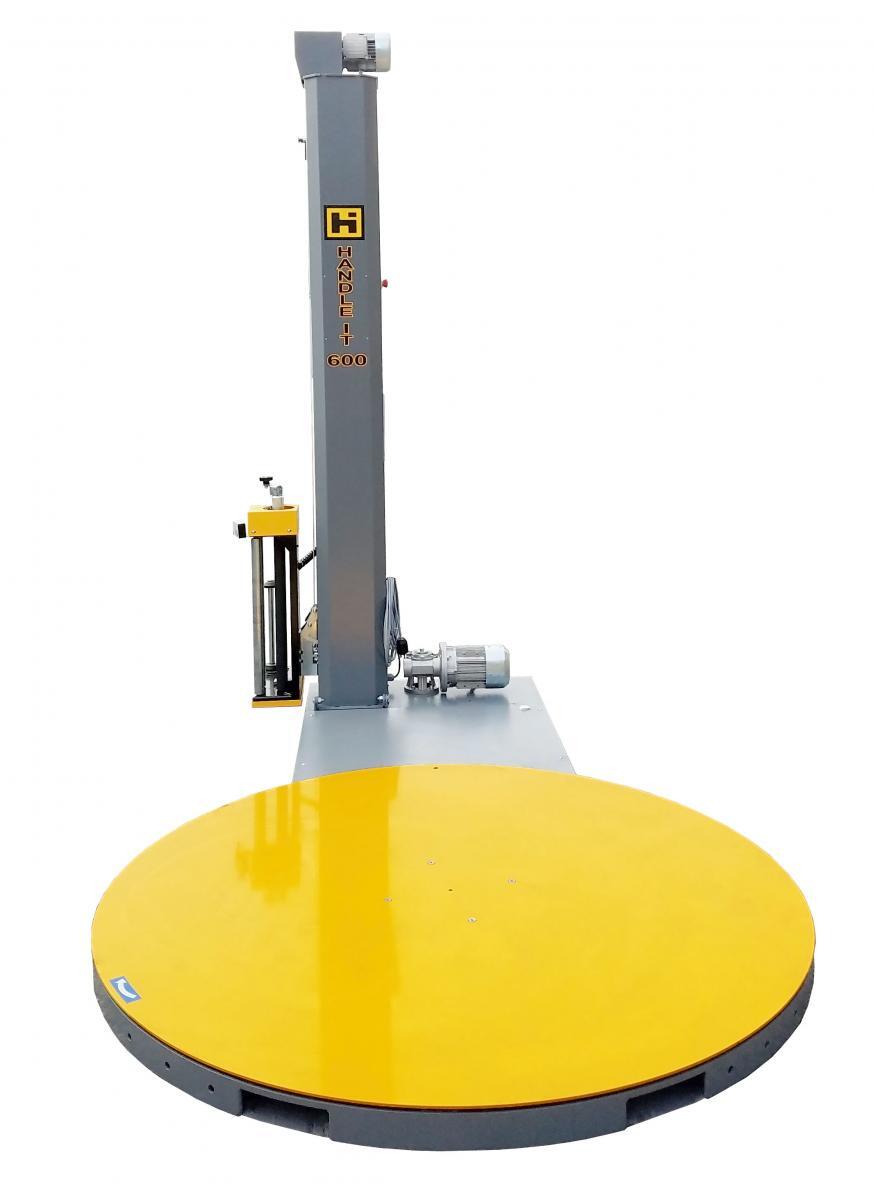

SWM-SA-0600-Stretch-Wrapper-1

Semi-automatic stretch wrap machines significantly improve your packaging operations. They can drastically reduce the time needed to wrap pallets compared to your current manual processes. Save both time and money with our robust line of semi-automatic pallet wrappers.

Choose from one of several models below and click on the one that best fits your needs.

Need help determining which one is right for you? Check out our comparison table below.

Model (SWM-SA – 0###) 600 800 850PS 1100 1200UL 2200 2300
Max Average Loads Per Day 20 100 100 300 200 300 300
Load Capacity 2600lbs. 4400lbs. 4400lbs. 4400lbs. 2600lbs. Unlimited Unlimited
Machine Dimensions (L x W x H) 93” x 59” x 88” 93” x 59”x 88” 93” x 59” x 88” 104” x 59” x 97” 119” x 82” x 95” 125” L x 113” W x 140” H 125” L x 113” W x 140” H
Load Dimensions (L x W x H)
Photo Eye ✓ ✓ ✓ ✓ ✓ – –
Electronic Film Tension Control – ✓ ✓ ✓ ✓ ✓ ✓
Power Pre-Stretch 250% – – ✓ ✓ ✓ ✓ ✓
Variable Power Pre-Stretch (600%) – – – Optional Optional Yes Yes
Auto Film Cut – – – Optional Optional Optional Optional
Max Wrap Height 86” 86” 86” 94” 94” 94″ 94″
Extended Mast Wrap Height. – 98” 98” 118” 118” 118” 118”
Custom Top & Bottom Wraps ✓ ✓ ✓ ✓ ✓
Rack & Pinion Carriage Drive – ✓ ✓ ✓ ✓ ✓ ✓
Integrated Scale Optional Optional Optional Optional – Floor scale recommended Floor scale recommended
Playback Recordable Cycles – ✓ ✓ – – – –
Onboard Diagnostics – – – ✓ ✓ ✓ ✓
Total pallets wrapped counter ✓ ✓ ✓ ✓ ✓ ✓ ✓
# Of Cycle Parameters 7 6 6 57 57
# Of User Saved Cycle Programs 3 9 regular & 9 recordable 32 32 32 32
Quick Select Parameters – – – ✓ ✓ ✓ ✓
Ergonomic Film Change – – – ✓ ✓ ✓ ✓
**Patented Ultra Low Frame No Ramp Needed, Turntable height less than 3/4” ** ✓ – –



Semi-Auto Stretch Wrapper Advantages

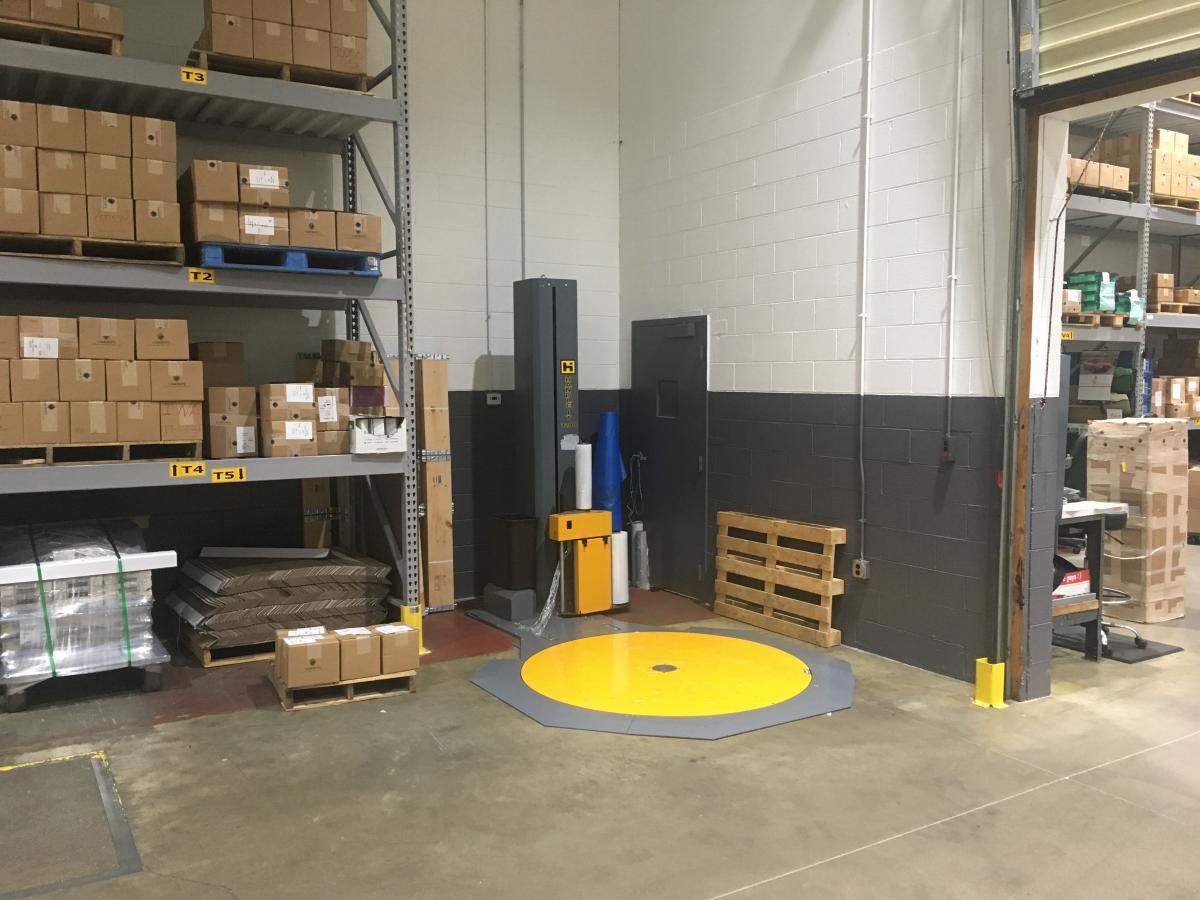

Handle-It-ultra-low-profile-1200ul-pallet-wrapper-with-ring-ramp
  • Designed and engineered in Europe
  • Final assembly, testing, and programming in Milwaukee, Wi
  • ISO 9000 certification
  • CE compliant
  • Utilize high-quality components
  • We test and pre-program every machine before shipment

Videos

FAQ

What Are Semi-Automatic Stretch Wrap Machines?
Stretch wrap turntable machines are industrial equipment designed to automate the process of wrapping pallets and loads with stretch film. They provide an efficient, safe, and cost-effective solution for securing goods for transportation or storage.
How Do Semi-Automatic Pallet Wrapper Machines Work?
The operator places the pallet onto the turntable and attaches the film. Once the wrap cycle is initiated, the machine automatically spins the pallet and applies the pallet stretch wrap film uniformly. After the cycle completion, the operator cuts the film and removes the wrapped pallet.
Wrapping by Hand vs. Pallet Wrapping Machine
Hand wrapping and using a semi-automatic stretch wrapper machine present two distinct approaches to securing loads. Hand wrapping tends to be not only time-consuming and physically demanding, but often results in inconsistent wrap quality.In contrast, pallet wrapping machines provide higher efficiency, consistency, and load stability, making them a superior choice for medium to high-volume operations. Additionally, turntable stretch wrappers require far fewer workers who won’t get nearly as tired as they would if wrapping by hand.
How Many Times Should a Pallet Be Wrapped?
A general guideline is to set your machine for two wrap revolutions on the top and two on the bottom. The wrap also goes up and down to cover the middle. We recommend increased wrap revolutions for heavier products.
