Very Narrow Aisle Forklifts

A VNA (Very Narrow Aisle) forklift is used for handling materials in warehouses with extremely tight aisle spaces — typically as narrow as 6 feet wide. These forklifts are designed to maximize storage capacity by allowing racks to be placed closer together while still enabling efficient picking and stacking.

Landoll-Logo-RGB-Full-Color-Compressed

Landoll Material Handling

Landoll manufactures two lines of Narrow and Very Narrow Aisle forklifts, engineered for superior material handling performance.

Landoll’s goal is to provide the best solution for your material handling needs. Bendi articulating and Drexel SwingMast® Narrow Aisle and Very Narrow Aisle forklifts can provide the perfect material handling solutions through increased utilization of space, improved productivity, greater flexibility and maximized efficiency.

b30_40AC-Hero-Image-800x466-1
B30AC / B40AC Bendi Forklift
Capacity: 3,000 - 4,000 lbs.
Features
  • 3,000 lb. (1361kg) and 4,000 lb. (1814kg) Capacity at 24″ (600mm) Load Center
  • Four-Wheel Design, Dual Rear Wheel Drive Provides Excellent Power, Braking and Traction
  • Ergonomic Design for Exceptional Operator Comfort and Safety
  • Integral Wide Stroke Sideshifter Makes Placing and Picking Loads Effortless
  • DuraSteer™ Front Wheel Hydraulic Steering Provides Smooth, Reliable, Long-Lasting Steering Control
  • Independently Controlled Rear Wheels Allow Independent Speed Control of Each Drive Tire Based on Steering Angle
  • Creep Speed Mode Adds Enhanced Control when Handling Loads at High Elevations or While Training Operators
  • High Visibility Mast Allows Optimum Safety and Control
  • AC Traction and Hydraulic Motors Ensure Minimal Maintenance and High Efficiency
  • High Efficiency Curtis AC Controllers Provide Trouble Free Operation
  • Interactive LCD Status Monitor (BDI with Lift Interrupt, Hour Meter with Service Monitor, Diagnostic Code Display, Input Device Calibration)
  • 48 Volt Electrical System and Large Capacity Battery Compartment
  • Optional Cold Storage Conditioned to -22°F (-30°C)
Options
  • Non-Standard Fork Lengths
  • LED Headlights, Flashing Light, and Rear Safety Lights
  • Integral Side Shifting Fork Positioner
  • Auxiliary Hydraulics
  • Non-Marking Tires
  • UL-583, Type EE Electrical Rating, FM Approved
  • Vinyl Seat
  • Slide-Out Sideways Battery Tray
  • Fire Extinguisher
  • Lazer Fork Height Indicator
  • Carriage Mounted Camera with Operator Compartment Monitor
  • Cold Storage Option for Freezer Operation to -22°F (-30°C)
B3-30AC-Hero-Image-800x633-copy
B3/30 AC Bendi Forklift
Capacity: 3,000 lbs.
Features
  • 3,000 lb. (1361kg) Capacity at 24″ (600mm) Load Center
  • 3-Wheel Design, Single Front Wheel Drive Provides Excellent Maneuverability and Traction
  • Ergonomic Design for Exceptional Operator Comfort and Safety
  • Integral Sideshifter Makes Placing and Picking Loads Effortless
  • DuraSteer™ Front Wheel Hydraulic Steering Provides Smooth, Reliable, Long-Lasting Steering Control
  • LandActive Control Provides Enhanced Traction Control Based on Steering Angle
  • Creep Speed Mode Adds Enhanced Control when Handling Loads at High Elevations or While Training Operators
  • High Visibility Mast Allows Optimum Safety and Control
  • AC Traction and Hydraulic Motors Ensure Minimal Maintenance and High Efficiency
  • High Efficiency Curtis AC Controllers Provide Trouble Free Operation
  • Interactive LCD Status Monitor (BDI with Lift Interrupt, Hour Meter with Service Monitor, Diagnostic Code Display, Input Device Calibration)
  • 48 Volt Electrical System and Large Capacity Battery Compartment
  • Optional Cold Storage Conditioned to -22°F (-30°C)
Options
  • Non-Standard Fork Lengths
  • Dual Overhead Guard-Mounted LED Headlights
  • Dual Rear Safety LED Light Bars
  • Safety Flashing LED Light
  • Backup Alarm – Beeping Tone (“Smart” dB Adjusting)
  • Fire Extinguisher – OHG Post Mounted
  • Roller / Slide-Out Battery Tray
  • Lazer Fork Height Indicator
  • Fork Positioner
  • Keyless Key Pad On-Off
  • Cold Storage Conditioned to -22°F (-30°C)
B40i5-feature-hero-image-800x501-1
B40I5 Bendi Forklift
Capacity: 4,000 lbs.
Features
  • 4,000 lb. (1814kg) Capacity at 24″ (600mm) Load Center
  • Four-Wheel Design, Dual Rear Wheel Drive Provides Excellent Power, Braking and Traction with Fast Travel Speeds
  • Ergonomic Design for Exceptional Operator Comfort and Safety
  • Integral Wide Stroke Side Shifter Makes Placing and Picking Loads Effortless
  • DuraSteerTM Front Wheel Hydraulic Steering Provides Smooth, Reliable, Long-Lasting Steering Control
  • Engine RPM is Controlled Automatically for all Hydraulic Functions without the Need for an Inching Pedal
  • High Visibility Mast Allows Optimum Safety and Control
  • Hydrostatic Braking Assures Automatic Smooth and Safe Braking when the Operator Removes Foot from the Accelerator Pedal
  • Integrated on Demand Tier III Fuel System Provides Efficient Control Over Engine RPM Ensuring Maximized Fuel Efficiency
  • Dash Display with Hour Meter, Fuel Gauge and Engine Monitoring
  • Via-Sonic Fuel Level Sensor with 99.5% Accuracy
  • Simplified Maintenance, Diagnostics and Calibration Performed through the Dash Display
Specifications
  • 4,000 lb. (1,814kg) Capacity at 24” (600mm) Load Center
  • Tier III Certified, LP Gas, 2.5L, Kubota Industrial Engine
  • Gear Driven Valve Train – No Belts or Chains
  • CAN-Bus Electronics for Integrated Control of Drive, Lift and Steering
  • Simplified Maintenance, Diagnostics and Calibration through Dash Display
  • Dash Display with Hour Meter, Fuel Gauge and Engine Monitoring
    Via-Sonic Fuel Level Sensor with 99.5% Accuracy
  • 180° Front-End “DuraSteer” Articulation / Steering Assembly with Extended Warranty
  • Heavy Duty Dual Rear Wheel
  • Hydraulic Motors
  • Automatic Hydrostatic Braking and
  • Foot Activated Hydraulic Parking Brake
  • Lift Heights to 360” (9.14M)
    78” (1.98M) Stacking Aisle with 48” (1,219mm) Long Load
  • High Visibility 3-Stage or 4-Stage Mast
  • Integral 11.2” (285mm) Stroke Side
  • Shifter and 36” (914mm) High Load Backrest
  • Dual Indoor / Outdoor Capability
  • Articulated 42” (1,067mm) Wide Floating Front Axle
  • Large Diameter Smooth Rubber Drive Tires
  • Polyurethane Load Tires
  • Comfortable Seated Operation with all Truck Controls within Easy Reach
  • Adjustable Vinyl Suspension Swivel Seat
  • Armrest and Adjustable Steering
  • Column, Key Switch, Horn and Seat Belt
  • Hydraulic Power Steering
  • 4-Post Heavy-Duty Overhead Guard
  • Safety Deadman Seat Switch
  • Heavy Duty Unitized Robotic Welded Chassis Design
  • Provisions for RF Terminals Provided
  • Accepts Class II Attachments
  • Easily Accessible Components for Low-Cost Maintenance
Combilift-Web-Logo

Combilift Material Handling

Maximise your warehouse efficiency with Combilift's award-winning forklifts, including multidirectional and sideloader options for various industries.

combi_cb_LPG
CB Series
Capacity: 5,000 - 6,000 lbs.
Features
  • Capacity: 5,000 lbs. – 6,000 lbs.
  • Lift Height: 159in
  • Platform Length: 31in
  • Overall Width: 76in
  • Engine Type: LPG or Diesel
  • Open Cabin
  • Multi Direction Operatio
  • Load Sensing Steering
  • 3 Wheel Hydrostatic Drive
  • +/- 100mm Side-shift
  • 4 Way Lever Positioning of Wheels
Combilift-–-COMBI-MR-–-Multi-directional-stand-on-reach-truck-Cut-Out
MR Series
Capacity: 5,000 lbs.
Features
  • Capacity: 5000lbs
  • Platform Length: 31i
  • Overall Width: 73in
  • Engine Type Available: Electric
  • Standing Operator Over-Head Guard
  • Multi Directional Operation
  • AC Electric Steering
  • AC Motor Technology
  • Multi-Function Joystick
  • Optional Integrated Hydraulic Fork Position
  • Stand and Sit
C6000-1

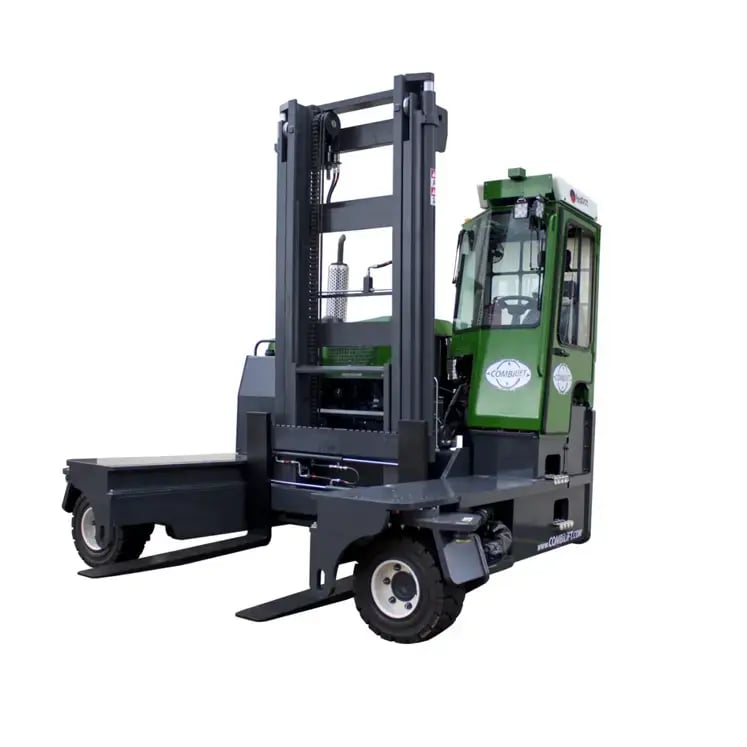

C Series
Capacity: 5,000 - 18,000 lbs.
Features
