Stand-Up Forklifts and Reach Trucks

Stand-up forklifts and reach trucks are commonly used in warehouses and distribution centers for handling pallets in tight spaces. Stand-up forklifts allow operators to quickly get on and off, making them ideal for high-volume, fast-paced operations. Reach trucks are designed to extend their forks forward, allowing them to access pallets stored deep in racking systems while maneuvering easily in narrow aisles. Both are essential for maximizing storage efficiency and improving material handling productivity.

linde-logo-mainpage-1
1346-linde copy
1346 Series

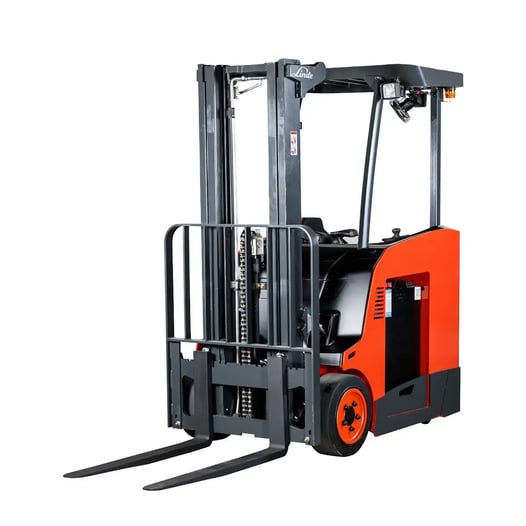

E18 – E20 Stand Up Electric Forklift
 Capacity: 3,500-4,000 lbs.
Features
  • Lifting Heights from 15′ to 25’
  • Capacity: 3,500 – 4,000 LBS
  • Tilt Assist function
  • Automatic Parking Brake
  • Forward Steering (Forks Leading)
  • Multi-function Control Handle
  • 100% AC Drive and Lift Motor Technology
  • Error Code Display with Detailed Text
Specifications
Model Load Capacity
(Q lb)		 Load Center
(c in)		 Wheelbase
(y in)		 Lift Height Tire Size: Front Tire Size: Rear
E20S 4000 24 48.2 195 18 x 7 x 12 1/8 10 x 5 x 6 1/2
E18S 3500 24 46.2 195 18 x 7 x 12 1/8 10 x 5 x 6 1/2
566A7979-white
5195 Series

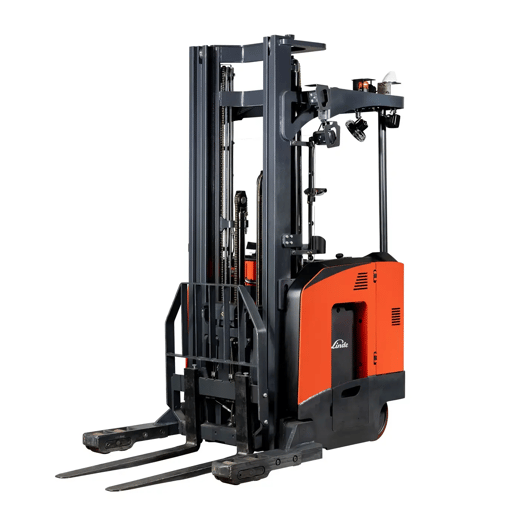

R15SX - R22SX Electric Reach Truck
 Capacity: 3,000 - 4,500 lbs.
Features
  • Lifting Heights from 15 – 42 ft
  • Capacity from 3,000 – 4,500 lbs
  • Capacity Retention
  • Single or Double Reach Mast
  • Fixed Drive Motor Assembly
  • Side Stance Position
  • 12-14 Hour Run Times
  • Dual Polyurethane Caster Wheels
Specifications
Model Power Unit Load Capacity
(Q lb)		 Load Center
(c in)		 Wheelbase
(y in)		 Tire Size: Front Tire Size: Rear Battery Voltage
R17SX-24V Electric 3500 24 58.9 13.5 x 5.1 5 x 4 24V
R17SX-36V Electric 3500 24 60.9 13.5 x 5.1 5 x 4 36V
R22SX Electric 4500 24 60.9 13.5 x 5.1 5 x 4 36V
R15SX Electric 3000 24 60.9 13.5 x 5.1 5 x 4 36V
unicarriers-logo-mainpage-2
scx-n2

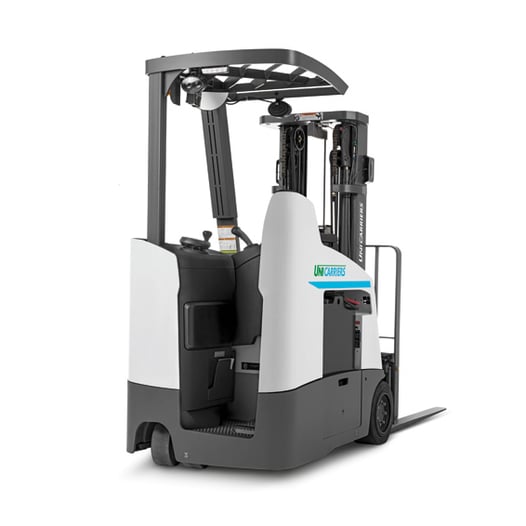

SCX N2 Series Stand Up Forklift
Capacity: 3,000 - 4,000 lbs.
Features
The Unicarriers SCX N2 Series stand up forklift is a workhorse that combines extraordinary maneuverability with exceptional performance in a truck that’s both powerful and highly efficient. Specifically designed for applications that require operators to frequently get on and off of the truck, the SCX N2 is loaded with ergonomic features like the lowest entry step in the industry and a suspended floorboard to reduce operator fatigue and maximize productivity.
Specifications
Model Basic Capacity (lbs) Maximum Fork Height ² Voltage (or Fuel Type) Length To Fork Face Chassis Width (in) Chassis Height (in) ¹ Gross Weight (lbs) ¹
SCX30N2 3,000 188 36 63 41 88 8,424
SCX35N2 3,500 188 36 65 41 88 8,424
SCX40N2 4,000 188 36 70 41 88 9,244
srxn

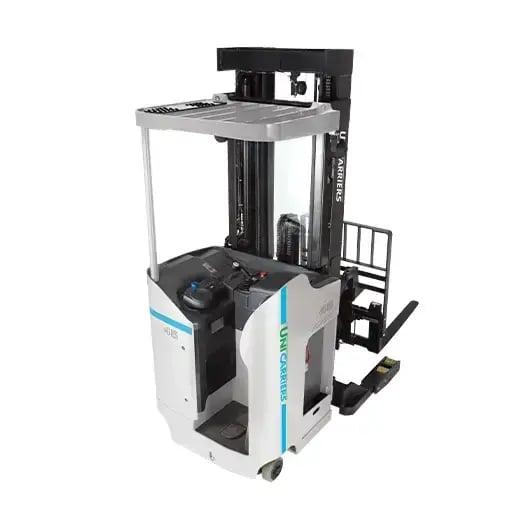

SRX Series Single and Double Reach Truck
Capacity: 2,600 lbs.
Features
Extraordinary maneuverability, electronic steering and adjustable performance settings combine to make the SRX Single and Double Reach Trucks the right choice for any material handling operation where space is at a premium. The rugged, proven design delivers greater uptime, is intuitive to operate, and easy to service. With its multiple performance settings, a wide range of options and variable capacities, the SRX can be custom-tailored to meet your specific requirements.
Specifications
Model Basic Capacity (lbs.) Maximum Fork Height ² Voltage (or Fuel Type) Length To Fork Face Chassis Width (in) Chassis Height (in) ¹ Gross Weight (lbs) ¹
SRX30ND 3,000 210 36 61.9 43 93.5 6,715
SRX45N 4,500 210 36 55.0 43 93.5 6,420
